ShockQC™

Reduce glass breakage by 80%

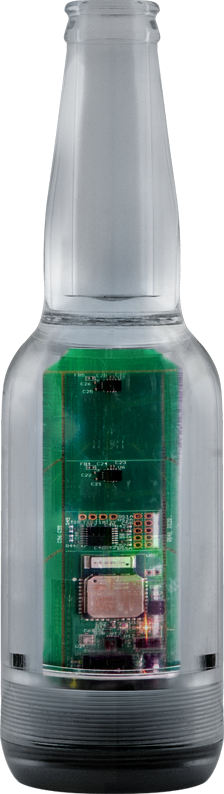

Image of ShockQC sensor in glass bottle

Measure IPS and G-force to reduce damage, waste and improve line efficiencies.

Containers that experience impact on the line that exceed the recommended IPS (inches per second) rating are far more likely to break and trigger a chain-reaction on your line.

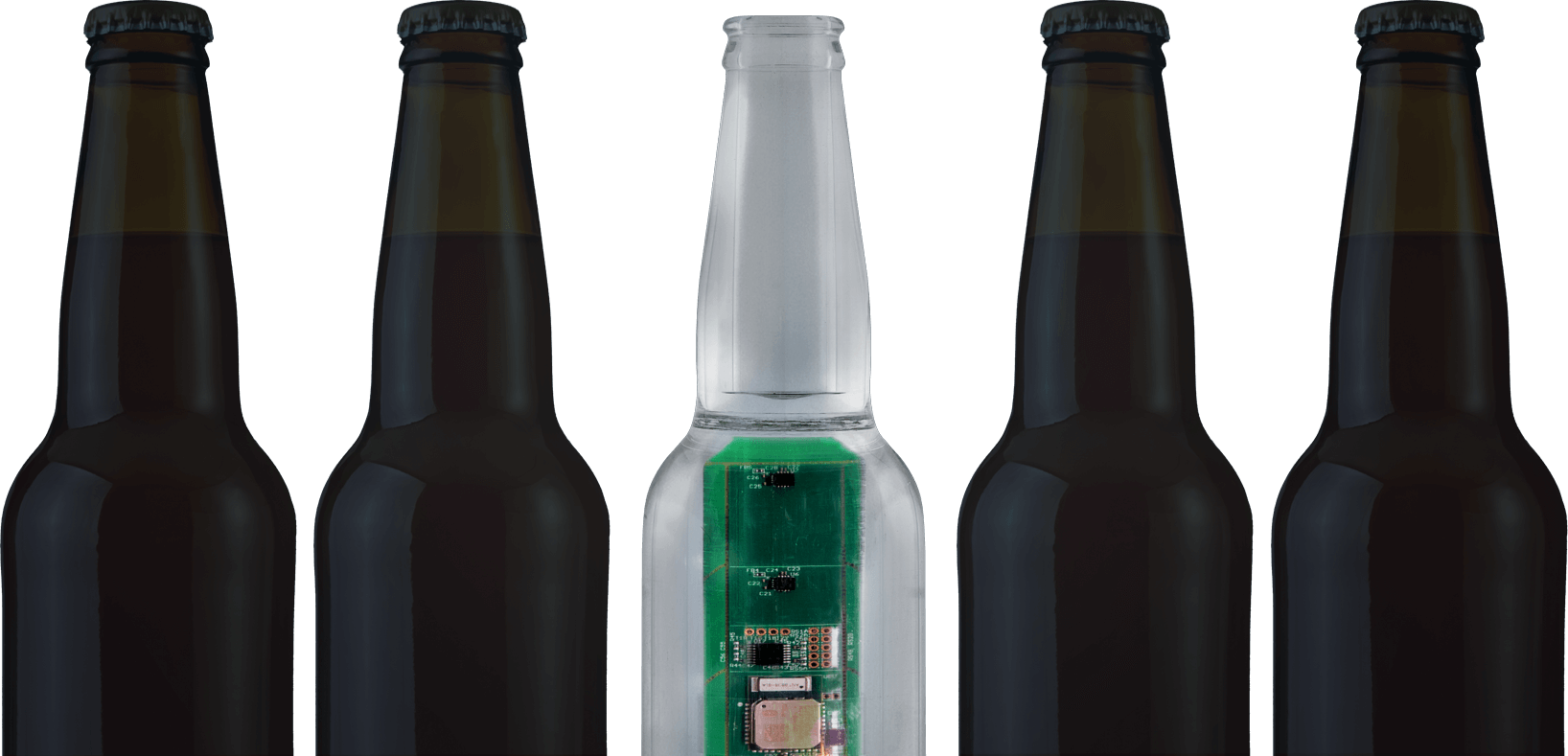

Row of glass bottles with ShockQC in a clear glass bottle in the middle

How the process works:

Use ShockQC™ smart replicas of your glass containers, cans or other fragile containers to measure IPS and G-Force to identify the root cause of damage with 99% repeatability. Location tracking with wireless Bluetooth beacons pinpoint the origin of damage and opportunities for improvement.

Icon showing that ShockQC can detect impact

Impact

Minimize breakage by pinpointing areas of impact greater than container rating using IPS and G-Force.

Icon showing that ShockQC can spin & tilt

Spin & Tilt

Control label and pressure damage by reducing degrees per second of container tilt and spin.

Icon showing that ShockQC can detect temperature

Temperature

Control contamination and quality issues in rinsing and pasteurization processes with temperature sensors.

Features & Benefits

Reduce breakage and damage by 80%.
Cut downtime by 60% with consistent use.
Improve line efficiencies, targeting downtime and maintenance.
Measure IPS (Inches Per Second) strength-rating for glass containers.
Calculate a rating of line impact performance.

E

Impact & IPS Measurement [ More+]

Industry’s only Inches Per Second (IPS) and Vidrala Impact Index (VII) measurement and visualization.

E

Line Intelligence Visualization

Executive dashboard data analysis for quick insights and trending through modern data visualization.

E

Interchangeable Pod System

Transferable sensor pods enable flexibility and cost-effective expansion to multiple replica container types.

E

Custom Acrylic Replica

Heat and water resistant acrylic replicas are based on your containers’ CAD drawings for absolute accuracy.

E

Video & Location Tracking

Wireless Bluetooth beacons combined with integrated video pinpoints and visualizes locations of high impact.

E

Transportation Mode [ More+]

Deploy in a case or pallet during shipping for a dock-to-shelf account of your product’s transportation journey.

Technical Specifications

E

Data Recording

Sampling Rate: Up to 100,000 samples/second to ensure 99% repeatability on any given point.

E

Battery

Type: Rechargeable Li-Ion
Charge: 8 hours continuous use

E

Impact Detection

Accelerometers: 5
Triaxial Accelerometers provide comprehensive 360º detection.

E

Bluetooth

Range: 300 ft.
Other: Dual-mode Bluetooth 4.0

E

Configurable App

Customized thresholds quickly detect areas where IPS and G-Force measurements exceed container rating.

E

Pre-Loaded Tablet

The Masitek app ships pre-loaded on a Windows-based tablet for quick set-up and real-time calibration.

E

Web-based Dashboard

Compare data runs and generate reports from anywhere via an easy to use web interface.

Insight, trends & detailed analysis.

Monitor trends such as line degradation or improvement over time.
The Masitek solution dashboard delivers actionable information about shock and impact to enhance your routines.

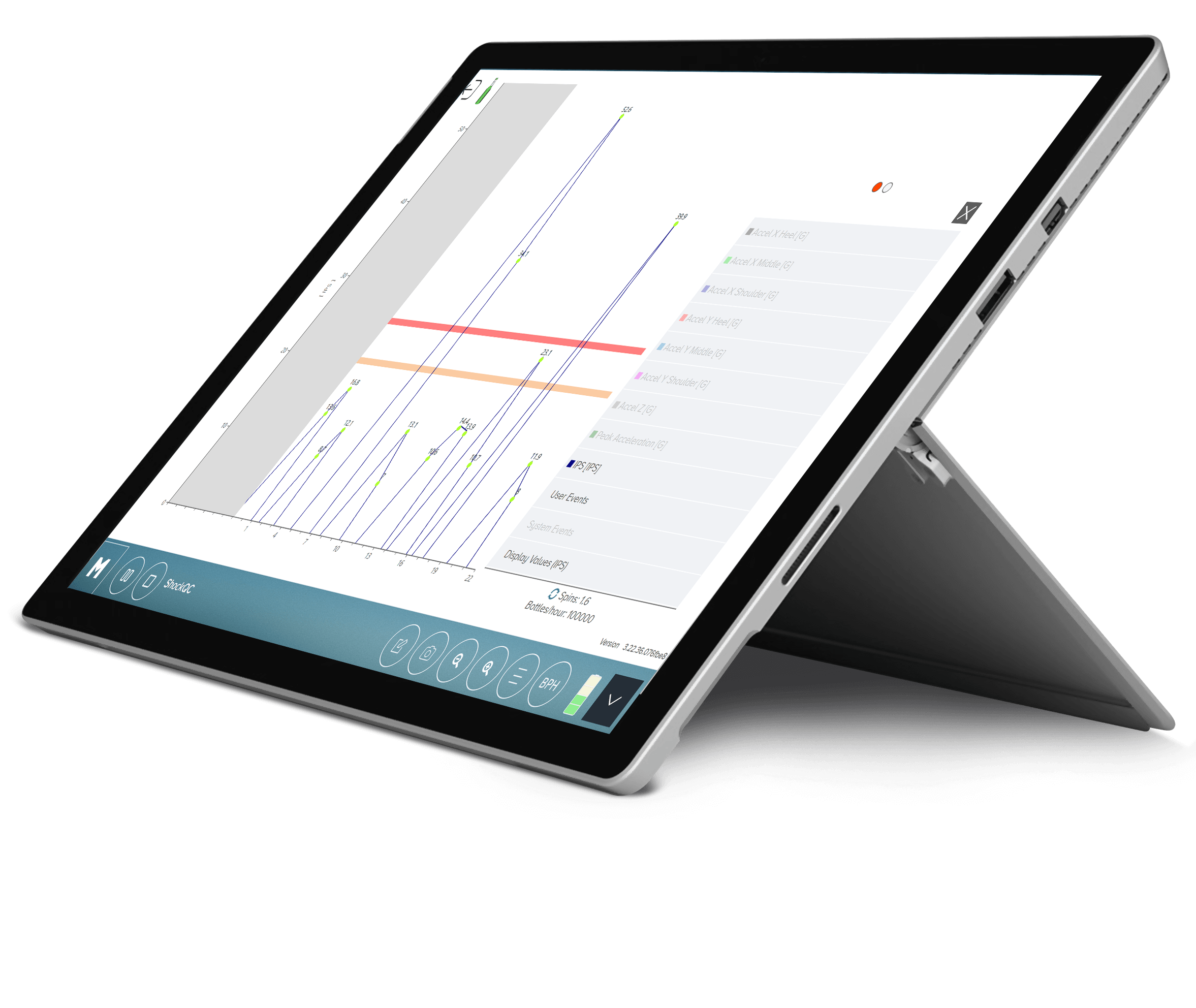

tablet showing shock impact and g force KPI analytics

ShockQC™

Watch it in Action

ShockQC™ is a very useful tool that we use to diagnose issues on customer filling lines. Having the ability to measure impacts in-line, wirelessly in real time has provided data to improve our customer’s filling operations.

– Michel Alesi,
Vice President of Operational Excellence, O-I Europe
